Danfoss fp715si wiring diagram. FP715 models are double insulated and do not require an earth connection. Is the least efficient diagram among the electrical wiring diagram. The FP Si can be configured by the installer at time of.

This is the Switched Live and should be put in the same terminal in the junction box as the Live brown wire. Danfoss Randalls UK based sales and manufacturing site State of the art temperature. Refrigeration and air conditioning.

Danfoss FP715Si Installation Manual. Worcester Bosch Combi Greenstar with zone valves Wiring Diagram. FP715 models are double insulated and do not require an earth connection however a parking terminal is provided on the wallplate.

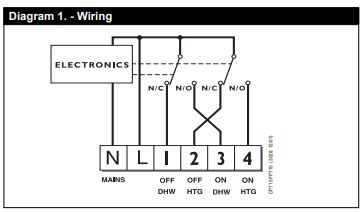

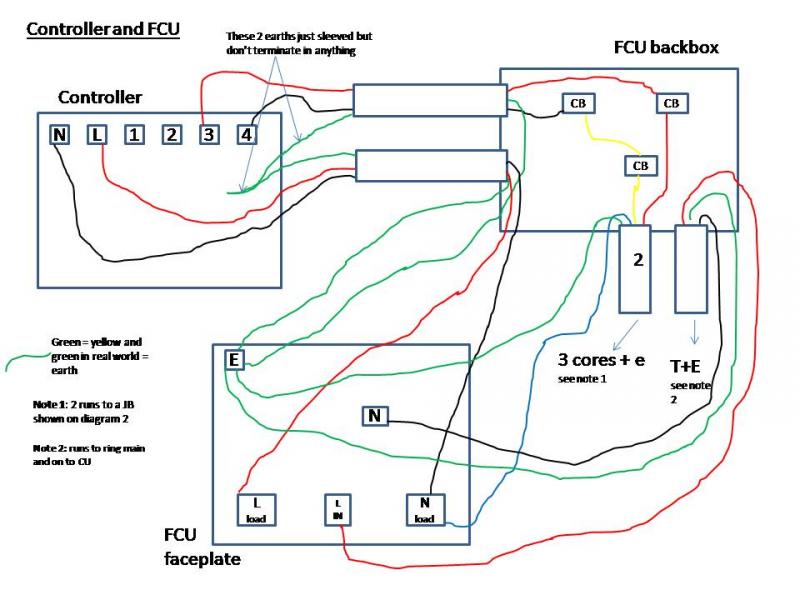

Danfoss Randall can accept no responsibility for possible errors in. However a parking terminal is provided on the wallplate which is clearly marked with an Earth symbol. For wiring connections refer to Diagram 1 below.

2 VLT is a registered Danfoss trademark Equipment Hazard. Danfoss Fp715si Programmer Wiring Diagram. That will leave you with a black wire with a brown sleeve on it in terminal 1.

If you dont have the instructions for it a diagram is usually printed inside the lid. Danfoss FP715Si Installation Manual 20 pages. Rotating shafts and electrical equipment can be hazardous.

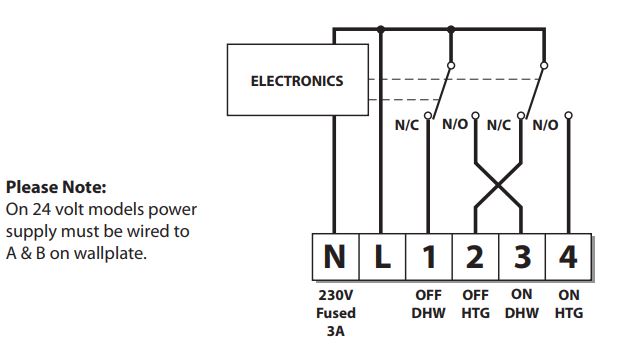

View and Download Danfoss FP installation users instructions online. Page 4 For wiring connections refer to diagram below. 01092018 01092018 5 Comments on Danfoss Fp715si Programmer Wiring Diagram Danfoss system explained 1 Electronic 2-Channel Full Programmer for Heating and Hot Water with Installation and programming instructions for the Danfoss FPSi Heating.

Not all thermostats need or have a neutral fitted 2. If there is a neutral present. Prior to mounting the plug-on module DIL switches on the rear of the plug-on module must be set.

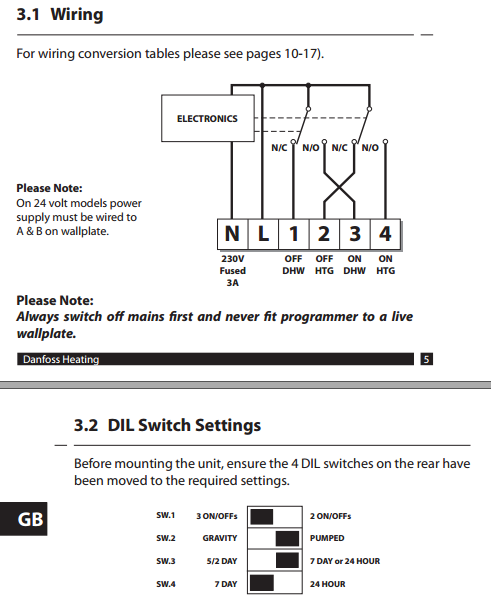

The brown loop of wire between the two sets of terminals is removed. This is clearly marked with an Earth symbol. Dil Switch Settings Wiring Always switch off mains ﬁ rst and never ﬁ t programmer to a live wallplate.

Look at the wiring diagram for your makemode of thermostat that you are removing. HSV3 vavle bodya roomstatcylinder stat and an fp715si twin channel programmerall wired up as per the diagram. Installation manual for Danfoss FP715Si.

WORK MUST BE COMPLETED BY QUALIFIED ELECTRICIANS OR. Danfoss Heating 3 GB FP715Si Electronic 2-Channel Full Programmer for Heating Hot Water with Service Interval Timer. Installation and programming instructions for the Danfoss FP715Si.

For a review on the FP720 and the improvements it makes on the old FP715si please have a look at our quick review blog post about the new FP720 heating timer and digital programmer by Danfoss. Heating Hot W ater with Ser vice Inter v al T imer. Electronic 2-Channel Full Programmer for Heating and Hot Water with Service Interval Timer.

Related Manuals for Danfoss FP715 Si. FP715 Si models are double insulated and do not require an earth connection however a parking terminal is provided on the wallplate. Other languages are a translation of the original instructions.

The valve body 3 on the compressor Oil injection control assembly Attach the connector 4 to the coil using the delivered accessories 5 and 6. This diagram shows the wiring layout using the most typical. This will show which are the two switching wires and which is the neutral wire.

The diagrams below show typical wiring circuits with which the WIRING CONVERSIONSto be used when replacing the following programmers with the FP CP. F or a lar ge print v ersion of these instructions. Electronic 2- Channel F ull P rogr ammer for.

FP715Si Programmer 1 1 1 1 TS715Si Timeswitch 1 1 WC4B Wiring Centre 1 1 1 1 1 1 1 Order No 087N6500V4 087N6500CB 087N6500V3 087N6500V5 087N6518CG 087N6517DG 087N6520DG Page. Danfoss can acc ept no responsibility for possible errors in. Danfoss Fp715si Programmer Wiring Diagram.

Installation start-up and maintenance should be performed only by qualified personnel. Controller Temperature Controller Thermostat Time Base Timer. Wiring issue Danfoss HSA3Yplan.

The English language is used for the original instructions. Central Heating Wiring Diagrams Danfoss Central Heating Wiring Diagrams 2 Spring Return Zone Valves PLEASE NOTE WE DO NOT ACCEPT ANY RESPONSIBILITY FOR THE ACCURACY OF ANY OF THE DIAGRAMS LITERATURE OR MANUALS AND INFORMATION MAY HAVE BEEN SUPERCEDEDAMENDED. It is strongly recommended that all electrical work conform to the National Electrical Code NEC and all local regulations.

Page 4 For wiring connections refer to diagram on page 5. This unit is the direct upgrade to replace the old FP715si programmer made by Danfoss. Danfoss Product Description Siemens Drayton Randall Honeywell Horstmann Sunvic Pegler Myson Potterton Daily electromechanical programmer 10 or 16 way RWB2E 400 805 600 SM2 3020P 3060 4033 SET3M H425 Tiara H425 Diadem MP2 TMP2 To replace a diverter valve with a mid-position valve replace old brown wire with grey and white together and make the.

Danfoss FP715Si User Manual 24 pages. FP715 Si models are double insulated and do not require an earth connection however a parking terminal is provided on the. Discussion in Plumbers Talk started by pinkvanman Apr 4 2012.
