It contains two wires one heated to a known value of 100 C 212 F above the other. The Discovery wiring diagram shows an orangeblack wire connection from pin 34 to a resistor that goes to ground in the case of a manual transmission so always in neutral.

Lucas 14cux Wiring Diagram - If you're searching for picture and video information related to the keyword you have come to pay a visit to the right site. Our website gives you suggestions for viewing the maximum quality video and picture content, hunt and locate more informative video content and graphics that match your interests. includes one of thousands of movie collections from various sources, particularly Youtube, therefore we recommend this video that you see. This site is for them to stop by this site.

Diagram Rover V8 Efi Wiring Diagram Full Version Hd Quality Wiring Diagram Avdiagrams Fanofellini It

The final version of Lucas electronic fuel injection was called 14CUX.

Lucas 14cux wiring diagram. The 14CUXs immediate predecessor was called 14CU. As air flow increases the current required to maintain this difference in temperature increases. 1314CU AND 14CUX SYSTEMS 1314CU and 14CUX Systems 83 SYSTEM INPUTS Mass Air Flow Sensor MAF The Mass Air Flow MAF sensor is a hot-wire type.

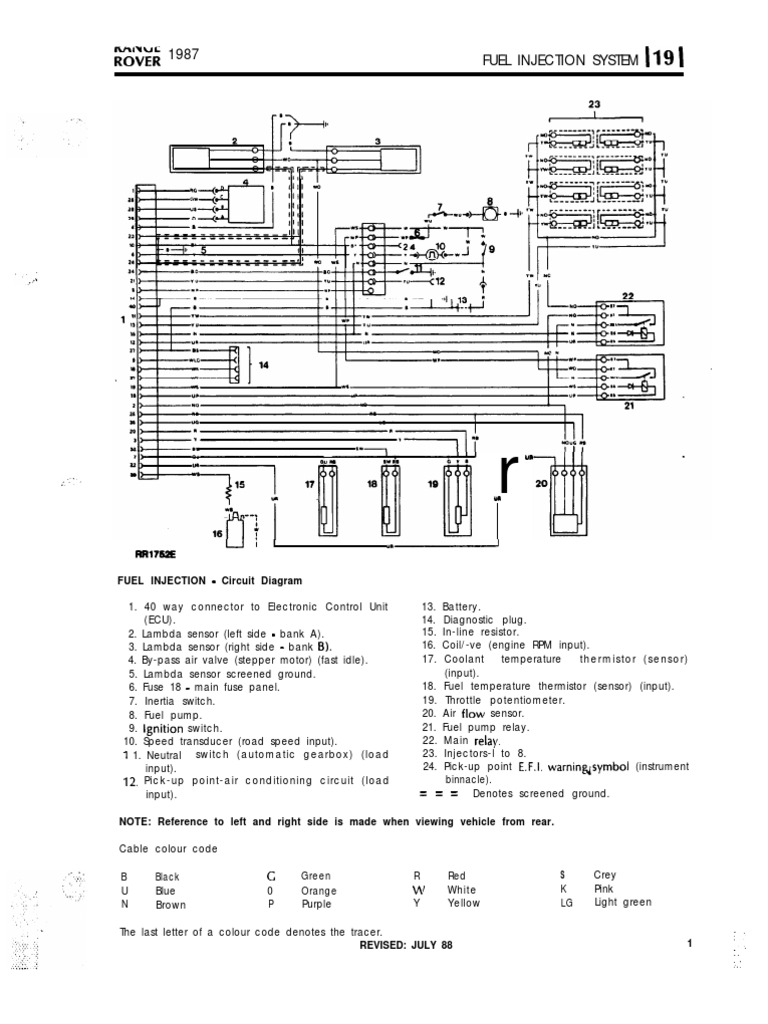

RANGE ROVER - Car PDF Manual Wiring Diagram Fault Codes DTC The LucasHitachi hot-wire MAF sensor was used on Range Rovers from their introduction in the US market in 1987. However the carb is being replaced with Lucas Hotwire 14CUX EFI. 14CUX and ignition wiring.

The wiring diagram for the 14CUX shows fuel relay and main relay with a common brown wwire apparently linking them but it doesnt show the source of power to either one. Dealers and DIY tuners are both able use our wealth of wiring diagrams Technical articles and application notes to assist them in their easy. Saturday 15th July 2017.

6 Replies 1184 Views. Service and Range Rover Classic Fuse Box Location Wiring Diagram. At first sight it appears that you could disconnect the road speed sensor itself to remove the limit but the only correct way to get around this is to reprogram the ECU.

From then on the hot wire system was the primary line of development leading in 1990 to 1995 to the 14CU system which culminated in the 14CUX system. 14CUX system were installed from 1990 through 1995 on engines with displacements of 39 and 42 liters. There must be plenty of info around.

I turned up with a dirty car sporting the Lucas 14CUX TVR rats nest wiring a distributor then turned up two weeks later to collect my beautifully cleaned car with the new Canems system fitted. Perfect Power direct to the public high performance engine management and piggy back chip controllers for all cars. Used a hot wire system cooled by incoming air to detect the precise air flow into the engine.

Lucas Wiring Diagrams Series D The For Open And Enclosed Models As Shown In Mo 108 Of. Is it normal that the main relay clicks as soon as I put 12V on the thick brown wire on. We all know the available wiring diagrams are pretty useless as most of the.

Ive already posted this in the Defender forum but we did not find the solution We have just converted a 110 35 V8 to 39 Hotwire injection. The 14CUX included a. Once again any helpful advice would be greatly appreciated.

Wiring Diagrams for LAND ROVER - Range Rover 39l V8 - Both will provide ultimate performance fuel efficiency and economy tuning. By roverv8bay Thu Nov 24 2016 1057 am. Ignition Switch For Leyland Nuffield Tractor 3 45 4 65 2100 4100 245 253 255 262 33 95 Picclick.

Note that all Lucas 14CUX and GEMS systems have a road speed limiter programmed in their software. According to the model this may be at 105 or 112 MPH. Probably inhibits the fueling when not in neutral.

I dont think the dizzy is electronic as cant see an ignition amp anywhere but as you can tell wiring isnt my strong point. Are they powered from ignition alternator battery or what. 3539 Lucas Throttle Position Sensor.

Current for Pump Injectors ECU. 14CUX 1990-1995 Range Rover Classic 1994-1995 Discovery 1993 Defender 110 1994-1995 Defender 90 SEQUENTIAL MULTIPORT FUEL INJECTION SFI Sequential Multiport Injection S FI is used on vehicles equipped with the SagemLucas Generic Engine Management System GEMS and the Bosch Motronic M521 engine management system. Hi there the coil is a range rover v8 12v type.

Rover 14CUX Hot Wire Mass Flow EFI. This system was used on US. Here is a pic.

Rm 2512 Wiring Diagram Lucas Ignition Switch Schematic. Hell he barely needs the wiring diagram the connectors will only mate with the appropriate sensors or require the most limited knowledge of what goes where and a pinout for the ECU. By wesbrooks Mon Mar 21 2016 110 pm.

Its part of a horrible LucasLR bodge to turn off the TACH signal on over-run the relay is switched by a vacuum switch teed into the fuel pressure regulator on. Chinese 100cc Quad Wiring Diagram Lucas 14cux Wiring Diagram. Not always mentioned in the diagrams is the relay on the end of the whiteblack wire from the coil -ve to the ECU TACH pin which is actually whiteblue on the other side of the relay.

Stand alone engine wiring diagram 39 disco engine. Do a google-search with 14CU 14CUX Lucas - hotwire. By Quagmire Thu Nov 19 2015 927 am.

Kevin yes sorry the package arrived and it is the same as another one i found a few days ago but similarly without the circuit diagram for the 14CUX. Final bits of wiring have thrown up a puzzle for me. Does anyone have access to a clear diagram for the 14CUX or better still instructions on how to integrate the whole EFIECU.

Its all cleaned up and I have the vacuum and coolant plumbing sorted I think but wiring diagrams are protected like national security depends on it. We are used to diesels and this is our first injection conversion. 6 Replies 960 Views.

I would expect that the signal wire would be grounded when in neutral maybe via a resistor.
